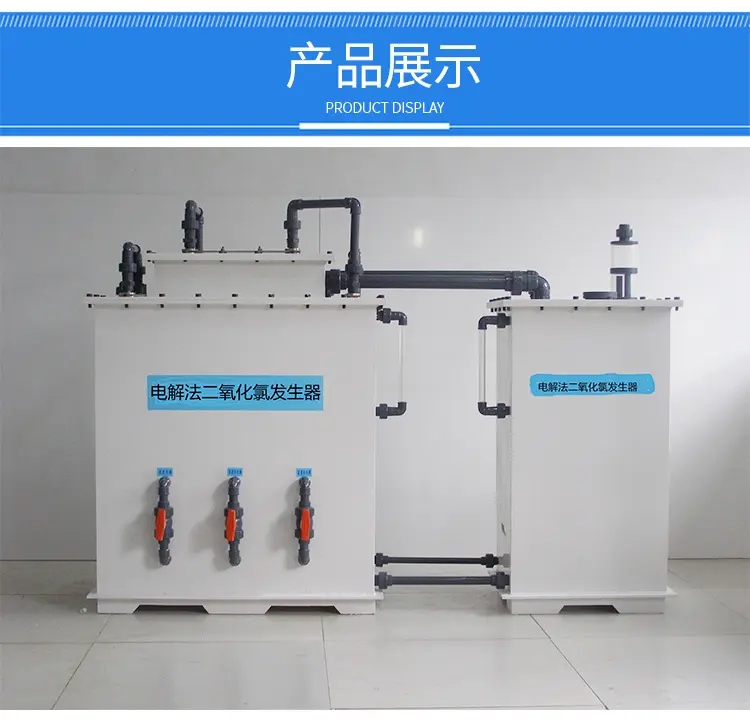

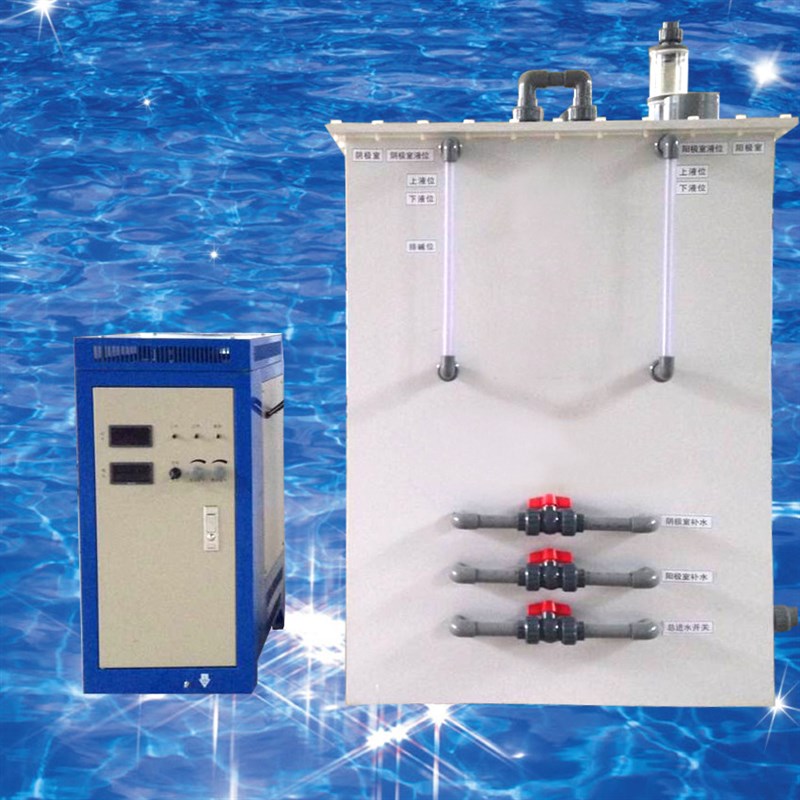

Electrolytic chlorine dioxide generator is composed of electrolytic cell, DC power supply, salt dissolving tank and supporting pipes, valves, instruments, etc.

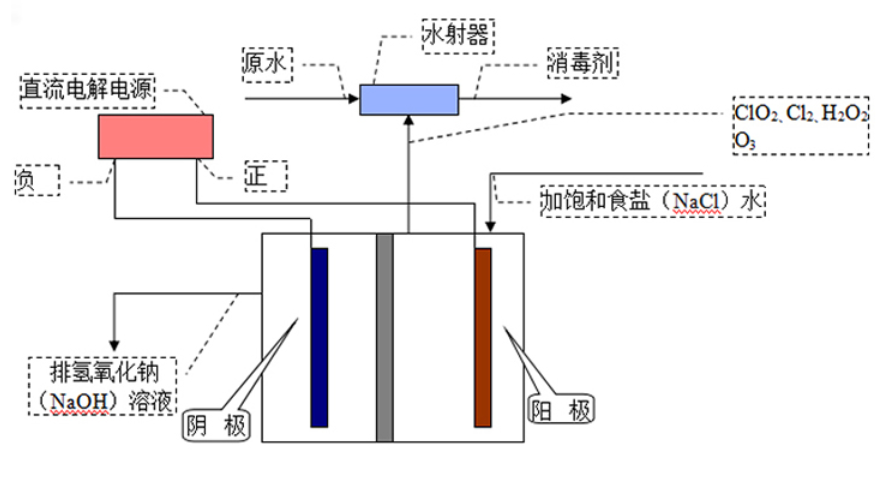

working principle
Electrolytic chlorine dioxide generator uses table salt or industrial salt as raw material for electrolysis, adds salt solution of a certain concentration into the anode chamber of the electrolytic cell at the rated flow rate, and adds clean water into the cathode chamber of the electrolytic cell, connects the DC power supply to start electrolysis, the ions in the salt solution begin to transfer in a directional direction, the positive ions adsorb towards the cathode, and the negative ions supplement towards the anode, and a series of chemical reactions occur due to the relative barrier of the diaphragm, The cathode chamber is formed with H2 and NaoH, and the anode chamber generates mixed disinfection gases such as CLO2, CL2, O3 and H2O2, which are inhaled into the water for disinfection through the negative pressure pipe of the water ejector.
technological process
Equipment features
Strong integrity, small size, light weight and beautiful appearance.
The service life of anode is up to 5-7 years.
The power supply performance is reliable, and the thyristor DC power supply is adopted.
The electrolytic cell is made of titanium and PVC plastic with strong corrosion resistance.
The diaphragm has high conductivity and is easy to replace.
Automatic temperature control cooling of electrolytic cell, stable and continuous operation.
All approaches and valves are made of UPVC engineering plastics.
Specification and model
|
model |
Gas production
|
Specifications
|
Electrolyser power
|
Disinfection dosing system |
|
|
pipe diameter |
Water source pressure （Mpa） |
||||
|
SH-KW-50 |
50 |
650x550x1200 |
0.3 |
DN15 |
≥0.2 |
|
SH-KW-100 |
100 |
650x550x1200 |
0.6 |
DN20 |
≥0.2 |
|
SH-KW-200 |
200 |
650x550x1200 |
1.2 |
DN20 |
≥0.2 |
|
SH-KW-300 |
300 |
750x650x1200 |
1.8 |
DN20 |
≥0.2 |
